Wall Mount Bracket
- Vertical Wall Mounted Bracket
- Model：JC-BLHE
- Update：2019-06-19
- Hits：
- Description Features Specifications
-

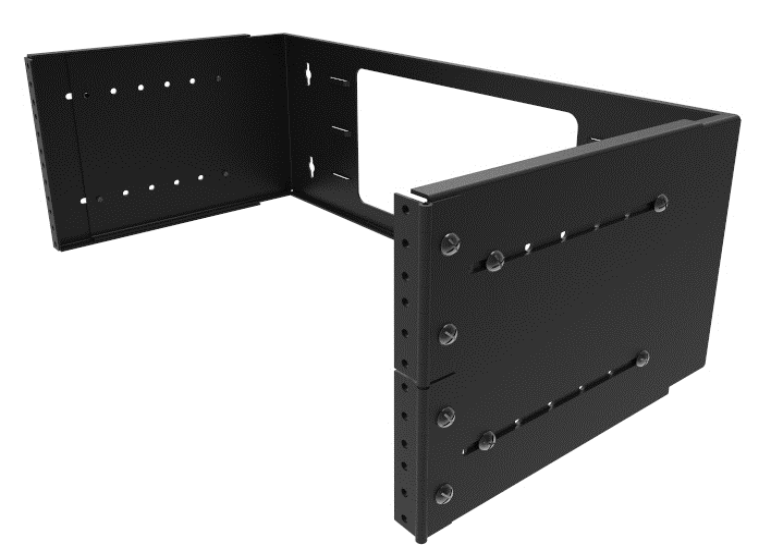

JC Item No: JC-BLHE Product Description Hinged Extendable Wall Mount Bracket
. Depth 6"-13.5"
. Adjustable depth
. M5 Screws 4 pcs & Wall Screws 2-4 pcsStandard Comply with with ANSI/EIA RS-310-D, IEC297-2, DIN41494 Width 19 Inch Depth 150-340mm Height 1U 2U 4U 6U Shipping Packaging Assembled Max. Static Loading Capacity 5 kgs - 24 kgs Material SPCC Quality Cold Rolled Steel Color Black Surface finish Degreasing, Pickling, Phosphating, Automatic Powder Coating.
