Wall Mount Bracket
- Wall Mounted Bracket
- Model：JC-HWBHD
- Update：2019-06-19
- Hits：
- Description Features Specifications
-

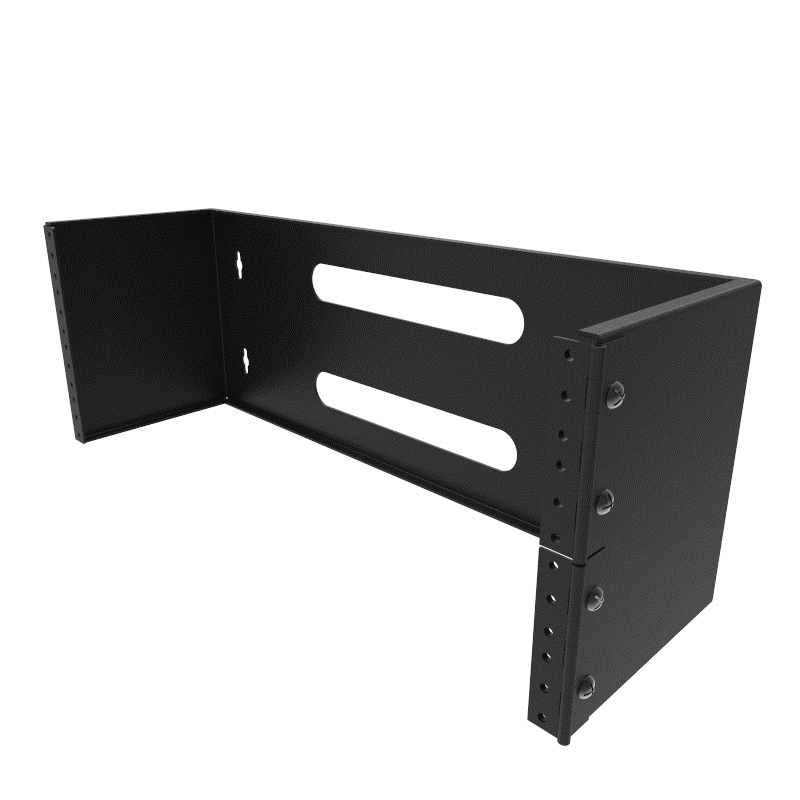

JC Item No: JC-HWBHD Product Description Fixed Hinged Wall Mount Bracket 6" Depth
. 2mm thick and Sturdy panel bracket for mounting standard patch panels, shelves, or cable management panels
. Space-saving wall mount bracket provides an alternation to installing a rack or cabinet in tight spaces
. Hinged design for left or right mounting with 6” installed depth and open frame for easy access
. Installing easily with wall-stud screw slots
. Including M5 Screws 4pcs & M6 Wall Screws 2-4pcs
Standard Comply with with ANSI/EIA RS-310-D, IEC297-2, DIN41494 Width 19 Inch Depth 150 mm Height 1U 2U 4U Shipping Packaging Assembled Capacity 8 kgs Material SPCC Quality Cold Rolled Steel Color Black Surface finish Degreasing, Pickling, Phosphating, Automatic Powder Coating.
